Precision alignment for cleaner pipeline welds
Getting a weld right starts long before the arc strikes. Fit-up accuracy, pipe alignment, and a stable working setup are what separate clean, consistent welds from costly rework. It’s why the tools you choose matter – and it’s why Tremco Pipeline Equipment supplies Sawyer Manufacturing Company pipeline equipment to customers across Australia, New Zealand and the Pacific Islands.
Sawyer has been manufacturing pipeline and welding equipment from their headquarters in Tulsa, Oklahoma since 1948. Over more than 75 years, its products have earned a reputation for durability, precision, and field-proven reliability on projects around the world.
Tremco Pipeline Equipment has a long-standing partnership with Sawyer, supplying the company’s clamps and beveling machines to weld testing equipment for over 20+ years. Now, TPE is supplying Sawyer’s latest release – Spider Clamp Series 400.

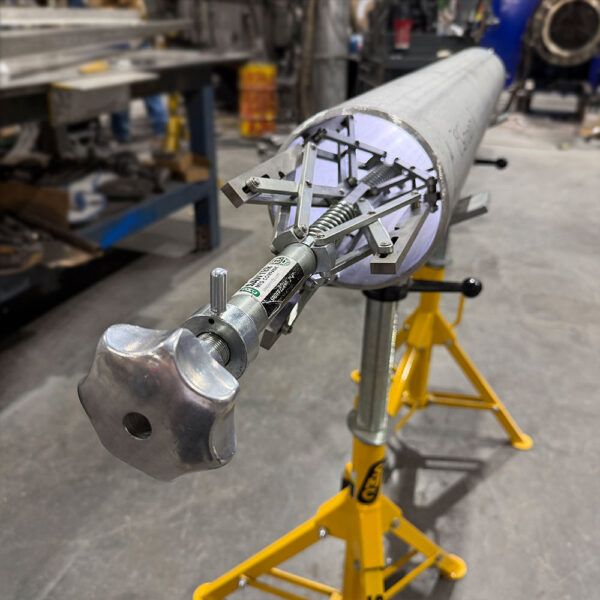

The Spider Clamp Series 400: Built for Precision Internal Alignment
The Series 400 is Sawyer’s latest internal alignment clamp, engineered to provide a secure and stable hold for joining flanges and short pipe sections where true bore alignment before tack-welding or final weld out is critical.
The tool features a dual expanding clamp system – two independently operated clamps connected by a precision-machined centering shaft. The lower clamp is inserted into the first pipe and secured with a hand knob. The upper clamp then expands via a hand bar to align and hold the mating pipe or fitting. Because each clamp moves independently, the Series 400 can compensate for slight variations in internal diameter – a practical advantage in field fit-ups, prefabrication environments, or situations where precision machining is not possible.
The tool offers a robust design that is easy to position and operate. Because the clamp sits entirely inside the joint, it allows full 360-degree access around the outside of the pipe, meaning there is no need for repositioning or partial removal mid-weld.
Manufactured from stainless steel, the clamp is corrosion resistant and compatible with a broad range of pipe materials from carbon stainless steel to duplex and exotic alloys. Its smooth, burr-free contact surfaces protect internal pipe finishes without sacrificing grip.
The Series 400 is available in three sizes weighing between 1.4-66 kg and able to accommodate pipe diameters of between 2-36 inches.
The Spider Clamp 400 ensures consistent accuracy, reduces setup time, and enhances overall weld quality – making it a trusted solution for professional fitters and fabricators.
Sawyer Clamps: A Tool for Every Fit-Up Scenario
The Spider Clamp 400 sits within Sawyer’s broader clamp range supplied by TPE. Whether the job calls for external alignment, internal fit-up, or reforming out-of-round heavy-wall pipe, Sawyer has a solution designed for it.
External Clamps
Sawyer’s external lineup covers everything from hand lever cage clamps to large-diameter hydraulic systems. The Hydraulic Cage Clamp handles pipe from 16-60 inches in diameter, using hydraulic force to pull down with minimal operator effort and a rapid-release mechanism to speed up removal after tacking. Arched crossbars give welders complete 360-degree access without removing the clamp.
For out-of-round pipe, the Rim Clamp and Ultra Rim Clamp are the tools of choice. Built to reform pipe up to Schedule 80, they handle out-of-round conditions up to 2 inches and are available for pipe diameters from 4 inches to over 72 inches. Plated jackscrews with pivoting pads and a setting gauge make accurate reforming pressure straightforward and repeatable.
To view the full range of Sawyer external pipe clamps supplied by TPE, explore our External Clamp product page.
Internal Clamps
Sawyer’s internal clamps are custom built and field proven. The Large Manual Clamp covers pipe from 10-64 inches in diameter, is self-positioning, and ships ready to use with a 49 inch reach rod, hook, and handle. It leaves the weld gap unobstructed for a full stringer bead – and with optional copper backup rings and a choice of hard or soft wheels, it can be configured for a wide variety of pipe-to-pipe fit-up requirements.
The Large Hydraulic Clamp delivers the same proven performance with hydraulic operation for faster, easier deployment. The Small Manual Clamp handles tighter applications, while the Jack Screw clamp is available for larger pipe over 48 inches.
To view the full range of Sawyer external pipe clamps supplied by TPE, explore our Internal Clamp product page.
Beveling, Weld Testing, and Welding Tools
Clamps are just part of what TPE supplies from the Sawyer range. Sawyer’s beveling machines are widely regarded as the industry standard, covering every common approach to pipe prep:
- Band Beveling Machine – precision cast stainless steel, smooth and accurate
- Quick Set Beveling Machine – no dogs or spacers required; split-frame design installs over the end or top of the pipe
- Compact Beveling Machine – robust and field-ready
- Chain Beveling Machine – flame cutting for 4-24 inch pipe diameters
- MX1 Beveling Machine – heavy-duty flame cutting for 4 inch pipe and larger, suitable for spiral and seam welded pipe
- Sawyer Saddle Machine – traditional-style saddle machine with the smoothest cut on the market.
For quality assurance, Sawyer’s weld testing range includes 15, 25, and 50-ton guided bend and tensile testers, fillet weld testers, and coupon cutters – covering the destructive testing requirements for most pipeline welding procedures.
Rounding out the range, Sawyer’s welding tools – including the Welders 3rd Hand, Welding Grasshopper, and Grinder Holder – are designed to keep crews organised and efficient at the joint.
Beveling, Weld Testing, and Welding Tools
Clamps are just part of what TPE supplies from the Sawyer range. Sawyer’s beveling machines are widely regarded as the industry standard, covering every common approach to pipe prep:
- Band Beveling Machine – precision cast stainless steel, smooth and accurate
- Quick Set Beveling Machine – no dogs or spacers required; split-frame design installs over the end or top of the pipe
- Compact Beveling Machine – robust and field-ready
- Chain Beveling Machine – flame cutting for 4-24 inch pipe diameters
- MX1 Beveling Machine – heavy-duty flame cutting for 4 inch pipe and larger, suitable for spiral and seam welded pipe
- Sawyer Saddle Machine – traditional-style saddle machine with the smoothest cut on the market.
Get Sawyer Equipment Through TPE
If your crew relies on precision fit-up and wants tools that will hold up in Australian conditions over the long haul, Sawyer Manufacturing equipment available through TPE is the benchmark to work to.
Browse the Sawyer range on the TPE website or contact the team directly for availability, pricing, and advice on the right tools for your project.
