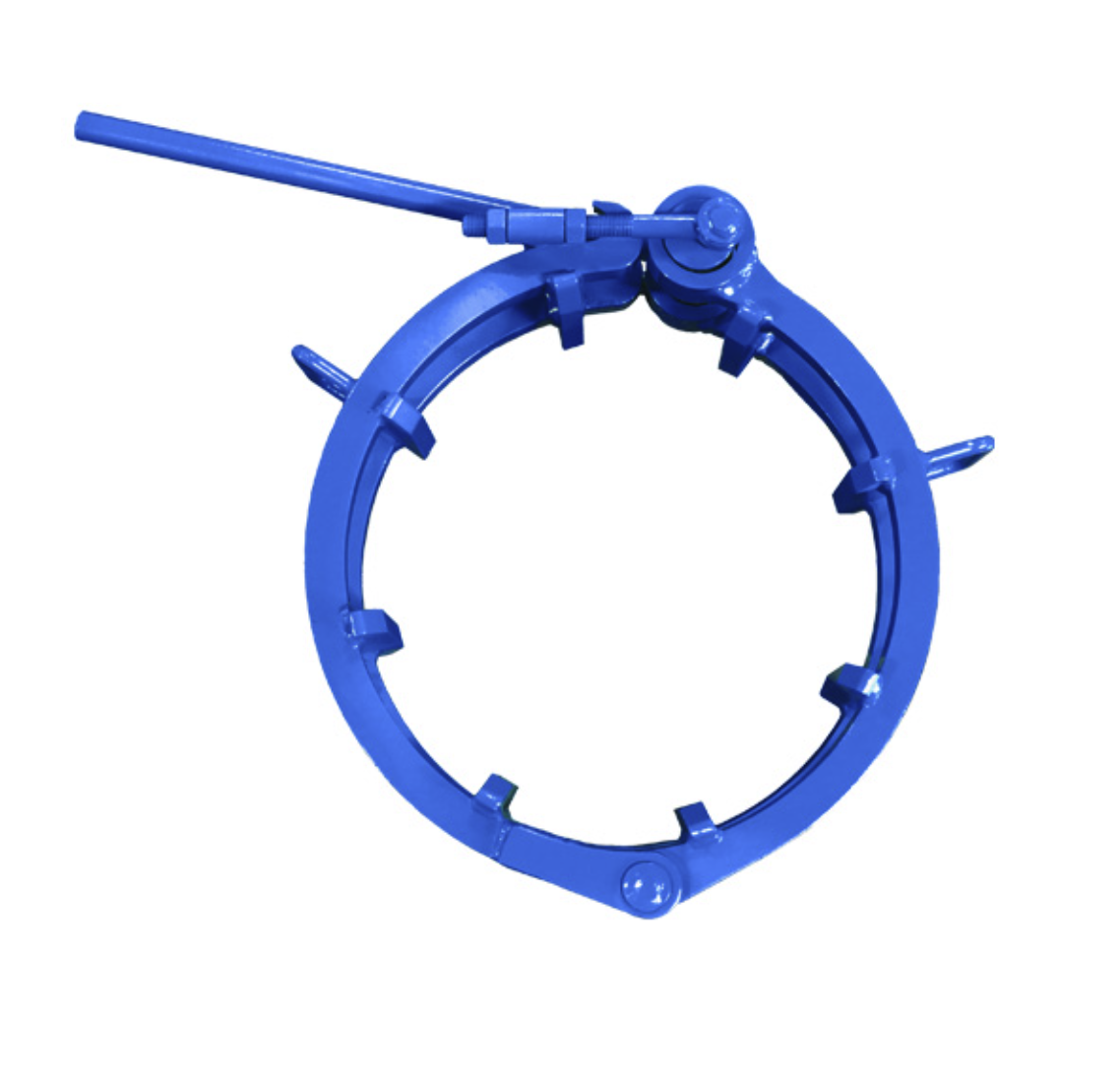

Hand Lever Cage Clamp
Sawyer’s Hand Lever Cage Clamp uses a manual toggle to easily align pipe. Each clamp fits one specific pipe diameter from 2″ to 60″. These clamps will align pipes through Schedule 80 but are not intended to reform. Jack Screw Wedges and Hi-Lo Wedges are optional accessories that give this clamp even greater versatility. Easy and efficient; the Hand Lever Cage Clamp has been an industry standard for over 50 years.
Features
- Available for pipe sizes 2″ – 60″
- No tack design optional to allow full 360 degree welding
- Each clamp fits a specific pipe diameter
- Simple, quick, and easy to use
- Precision bored to ensure positive, accurate alignment
- Pipeline proven
- 1 year warranty
Manual Cage Clamp – Tack and No Tack
| Part Number | Description | Lbs | In |
|---|---|---|---|
| 255M-2 | 2″ Manual Clamp – Tack or No Tack | 14 | 12X12X12 |
| 255M-2.5 | 2.5″ Manual Clamp – Tack or No Tack | 16 | 12X12X12 |
| 255M-3 | 3″ Manual Clamp – Tack or No Tack | 18 | 12X12X12 |
| 255M-3.5 | 3.5″ Manual Clamp – Tack or No Tack | 19 | 12X12X12 |
| 255M-4 | 4″ Manual Clamp – Tack or No Tack | 20 | 12X12X12 |
| 255M-5 | 5″ Manual Clamp – Tack or No Tack | 32 | 12X12X12 |
| 255M-6 | 6″ Manual Clamp – Tack or No Tack | 32 | 12X12X12 |
| 255M-8 | 8″ Manual Clamp – Tack or No Tack | 51 | 18X18X18 |
| 255M-10 | 10″ Manual Clamp – Tack or No Tack | 54 | 18X18X18 |
| 255M-12 | 12″ Manual Clamp – Tack or No Tack | 66 | 24X18X18 |
| 255M-14 | 14″ Manual Clamp – Tack or No Tack | 102 | 24x24x18 |
| 255M-16 | 16″ Manual Clamp – Tack or No Tack | 110 | 30x30x20 |
| 255M-18 | 18″ Manual Clamp – Tack or No Tack | 117 | 32x32x24 |
| 255M-20 | 20″ Manual Clamp – Tack or No Tack | 124 | 32x32x24 |
| 255M-22 | 22″ Manual Clamp – Tack or No Tack | 128 | 32x32x24 |
| 255M-24 | 24″ Manual Clamp – Tack or No Tack | 136 | 36x36x24 |
| 255M-26 | 26″ Manual Clamp – Tack or No Tack | 158 | 36x36x24 |
| 255M-28 | 28″ Manual Clamp – Tack or No Tack | 195 | 36x36x24 |
| 255M-30 | 30″ Manual Clamp – Tack or No Tack | 206 | 42x42x24 |
| 255M-31 | 31″ Manual Clamp – Tack or No Tack | 206 | 42x42x24 |
| 255M-32 | 32″ Manual Clamp – Tack or No Tack | 213 | 42x42x24 |
| 255M-33 | 33″ Manual Clamp – Tack or No Tack | 213 | 42x42x24 |
| 255M-34 | 34″ Manual Clamp – Tack or No Tack | 227 | 48x48x24 |
| 255M-36 | 36″ Manual Clamp – Tack or No Tack | 238 | 48x48x24 |
| 255M-38 | 38″ Manual Clamp – Tack or No Tack | 262 | 50x50x24 |
| 255M-40 | 40″ Manual Clamp – Tack or No Tack | 280 | 50x50x24 |
| 255M-42 | 42″ Manual Clamp – Tack or No Tack | 338 | 60x60x24 |
| 255M-44 | 44″ Manual Clamp – Tack or No Tack | 338 | 60x60x24 |
| 255M-46 | 46″ Manual Clamp – Tack or No Tack | 338 | 60x60x24 |
| 255M-48 | 48″ Manual Clamp – Tack or No Tack | 350 | 60x60x24 |
| 255M-50 | 06″ Manual Clamp – Tack or No Tack | 350 | 72x72x24 |
| 255M-52 | 52″ Manual Clamp – Tack or No Tack | 350 | 72x72x24 |
| 255M-54 | 54″ Manual Clamp – Tack or No Tack | 377 | 72x72x24 |
| 255M-56 | 56″ Manual Clamp – Tack or No Tack | 377 | 72x72x24 |
| 255M-58 | 58″ Manual Clamp – Tack or No Tack | 377 | 72x72x24 |
| 255M-60 | 60″ Manual Clamp – Tack or No Tack | 377 | 72x72x24 |
| Special | Stainless Steel and Special Sizes | Call for Quote | Call for Quote |
